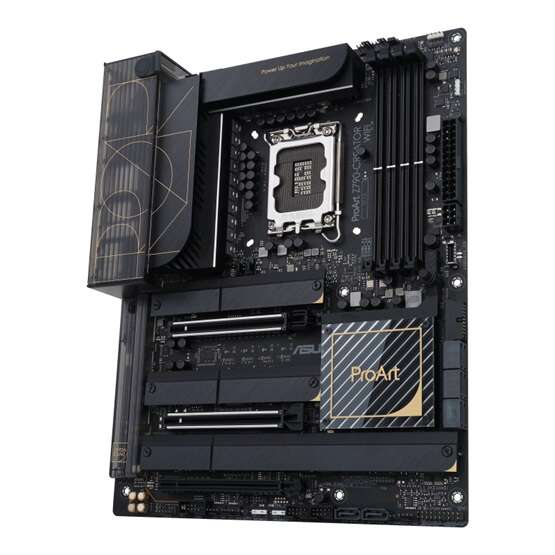

Asus Alaplap S1700 PROART Z790-CREATOR WIFI INTEL Z790, ATX

ModelProArt Z790-CREATOR WIFICPUIntel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel® Z790 ChipsetMemory4 x DIMM, Max. 128GB, DDR57200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.Graphics1 x HDMI® port**2 x Intel® Thunderbolt™ 4 ports (USBType-C®) support DisplayPort*** and Thunderbolt™ video outputs***** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Support 4K@60Hz as specified in HDMI 2.1.*** Support 8K@60Hz as specified in DisplayPort 1.4.**** Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. For display connection and video output configuration regarding DP IN and Intel® Thunderbolt™ 4 ports, please refer to the user manual for more details. VGA resolution support depends on processors’ or graphic cards’ resolution.Expansion SlotsIntel® 13th & 12th Gen Processors*2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)Intel® Z790 Chipset**1 x PCIe 4.0 x16 slot (supports x4 mode)* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.StorageTotal supports 4 x M.2 slots and 8 x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)Intel® Z790 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**8 x SATA 6Gb/s ports*** Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4.Ethernet1 x Marvell® AQtion 10Gb Ethernet1 x Intel® 2.5Gb EthernetASUS LANGuardWireless & BluetoothWi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5/6GHz frequency band*Bluetooth® v5.3*** WiFi 6E 6GHz regulatory may vary between countries.** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.USBRear USB (Total 8 ports)2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support6 x USB 3.2 Gen 2 port(s) (6 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 2×2 connector(s) (support(s) USB Type-C® with 60W PD 3.0 / QC 4+)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsAudioRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 11…
