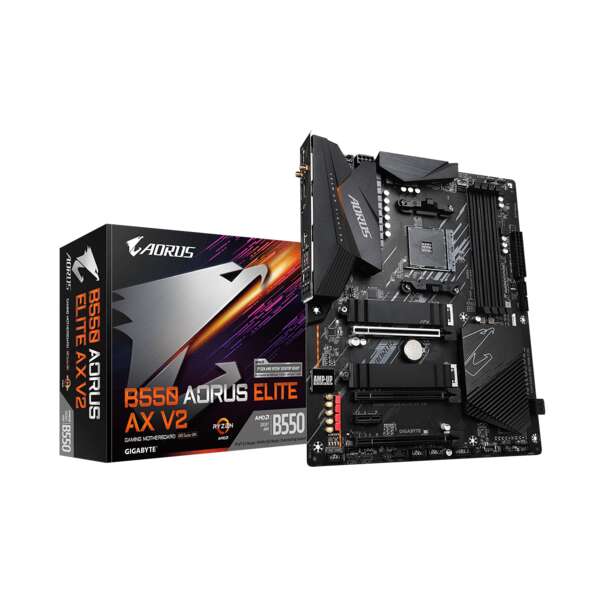

Gigabyte Alaplap AM4 B550 AORUS ELITE AX V2 AMD B550, ATX

CPUAMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors(Please refer „CPU Support List” for more information.)ChipsetAMD B550Memory4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryAMD Ryzen™ 5000 series processors/ 3rd Generation AMD Ryzen™ :Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer „Memory Support List” for more information.)Onboard GraphicsIntegrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Maximum shared memory of 16 GBAudioRealtek® ALC1200 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF OutLANRealtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)Wireless Communication moduleIntel® Wi-Fi 6 AX200WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment.Storage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs- New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- Supporting SATA and PCIe 3.0 x4/x2 SSDs4 x SATA 6Gb/s connectors, integrated in the Chipset:- Support for RAID 0, RAID 1, and RAID 10USBCPU:2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel2 x USB 3.2 Gen 1 ports on the back panelChipset:1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header1 x USB 3.2 Gen 1 port on the back panel2 x USB 3.2 Gen 1 ports available through the internal USB header2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the internal USB headersInternal I/O Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip header2 x addressable LED strip headers2 x RGB LED strip headers1 x front panel header1 x front panel audio header1 x USB Type-C™ port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.Back Panel Connectors1 x DisplayPort1 x HDMI port2 x SMA antenna connectors (2T2R)2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacksI/O ControlleriTE® I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverhe…
