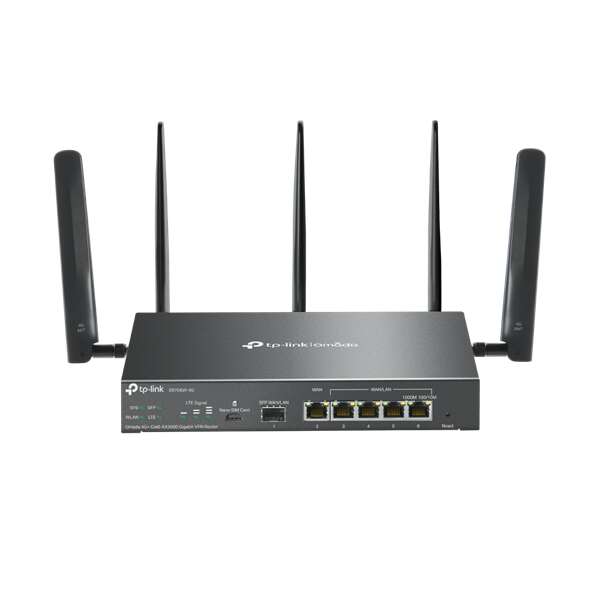

TP-LINK – ER706W-4G Omada 4G+ Cat6 AX3000 Gigabit VPN Router

4GNetwork TypeLTE Band of EU:• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8(2100/1800/850/900 MHz)Carrier Aggregation:B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41B3+B3/B5/B7/B8/B20/B28/B38/B40/B41B5+B5/B7/B38/B40/B41B7+B7/B8/B20/B28/B32B8+B32/B38/B40/B41B20+B32/B38/B40B28+B32/B38/B40/B41B38+B38B40+B40B41+B41SIM Type1× Nano SIM CardFrequency• Downlink: 300 Mbps;• Uplink: 50 MbpsBIZTONSÁGHozzáférés-vezérlésSource/Destination IP Based Access ControlSzűrés• Web Group Filtering†• URL Filtering• Web Security†ARP-s támadás elleni védelem• Sending GARP Packets• ARP Scanning†• IP-MAC BindingHálózati támadások elleni védelem• TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WANHARDVER JELLEMZŐKCsatlakozások• 1 Gigabit SFP WAN/LAN Port• 1 Gigabit WAN Port• 4 Gigabit LAN/WAN PortsHálózati összeköttetés• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)GombReset ButtonHálózati tápegység12VDC / 2A Power AdapterWi-Fi Frequency & Signal Rate• 2.4 GHz: 574 Mbps• 5 GHz: 2402 Mbps (HE160)Flash128 MB NANDDRAM512 MB DDR4LEDSYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)Méretek (Sz x Mé x Ma)8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are notincluded)Antenna• Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas• LTE: Two 4.0dBi omnidirectional detachable antennasFelszerelésDesktop/Wall-MountingMax. áramfelvételEU: 17.3WMŰKÖDÉSI JELLEMZŐKGRE• Unencrypted: 545.3Mbps• Encrypted: 282.6MbpsWireGuard VPN387.7MbpsEgyidejű munkamenet150,000New Sessions /Second5,100NAT (Static IP)947.1Mbps / 940.1MbpsNAT(DHCP)949.2Mbps / 941.1MbpsNAT(PPPoE)942.6Mbps / 941.1MbpsNAT (L2TP)875.4Mbps / 892.0MbpsNAT (PPTP)881.2Mbps / 895.8MbpsIPsec VPN Throughput• ESP-SHA1-AES256: 652.2Mbps• ESP-SHA256-AES256: 654.4Mbps• ESP-SHA384-AES256: 646.5Mbps• ESP-SHA512-AES256: 670.5 MbpsOpenVPN115.5MbpsL2TP VPN Throughput• Unencrypted: 990.0Mbps• Encrypted: 475.0MbpsPPTP VPN Throughput• Unencrypted: 1177.9Mbps• Encrypted: 177.4MbpsSSL VPN Throughput122.5Mbps66 Byte Packet forwarding rate1,453,489 pps / 1,453,488 pps1,518 Byte Packet forwarding rate81274 pps / 91275 ppsVEZETÉK NÉLKÜLI JELLEMZŐKTovábbi funkciók• Seamless Roaming• Mesh (with EAP that supports Mesh)• OFDMA• Beamforming• MU-MIMO• Rate Limit: Based on SSID/Client• Airtime Fairness• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise• Multiple SSIDs: 16 in total (8 per radio)VendéghálózatSupportALAPFUNKCIÓKWAN kapcsolati típus• Static IP• Dynamic IP• PPPoE (supports MRU Configuration)• PPTP• L2TPMAC klónozásaModify WAN AddressDHCP• DHCP Server• DHCPv6 PD Server (only in Standalone Mode)• DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCPSMSReceive / Send SMSIPv6StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address modeVLAN802.1Q VLANIPTVIGMP v2/v3 Proxy, Custom Mode, Bridge ModeHALADÓ FUNKCIÓKACLIP/Port/Protocol/Domain Name FilteringAdvanced Routing• Static Routing• Poli…
